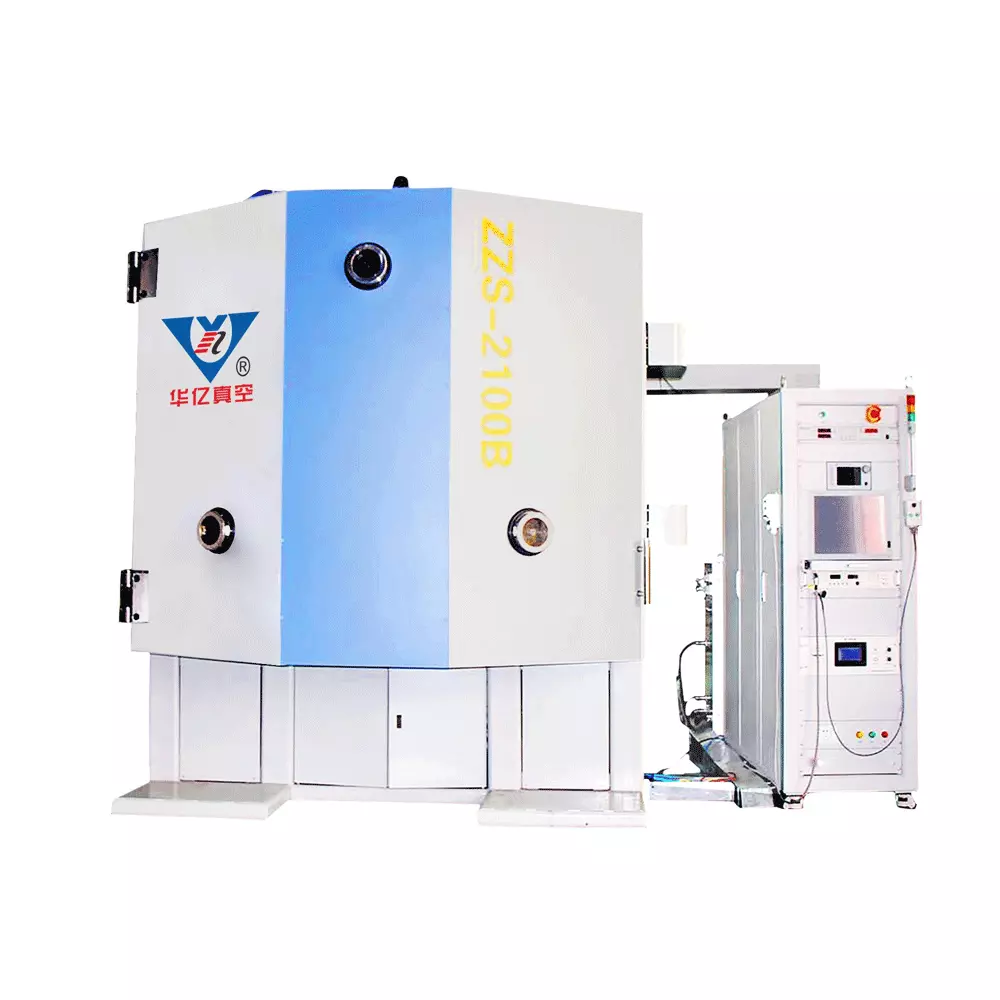

Product Details
This equipment is suitable for depositing optical coatings on precision optical components and high-precision optical communication products; electro-optical metal coatings, laser coatings, cold light coatings, beam-splitting coatings, anti-reflective coatings, various optical filters (ultraviolet and infrared cutoff filters), high-reflectivity coatings, solar protection coatings, anti-reflective coatings for plastic lenses and acrylic, various optical filters with electro-optical coatings, glass craft products, and various reflective lamp bowls.
Examples of Product Applications
Basic Technical Specifications
| Model and Dimensions | ZZS-550B | ZZS-800B | ZZS-300B | ZZS-1550B | ZZS-1800B | ZZS-2050B | ZZS-2350B | ZZs-2700B |
| Dimensions (mm) | 550xH680 | 800xH900 | 1300xH1500 | 1550xH1700 | 1800xH1800 | 2050xH1500 | 2350xH1500 | 2700xH1850 |
| Construction | Upright, front-opening, 304 stainless steel | |||||||
| Rotational Speed | 0–30 RPM (variable-frequency speed control) | |||||||
| Pumping Speed | From atmospheric pressure to 3.0×10⁻³ Pa in ≤15 minutes (no load) | |||||||
| Ultimate Vacuum | 3.0x10－⁴ P | |||||||
| Fixture | Center-mounted rotating umbrella frame, single-piece or split-type | |||||||
| Heating System | Armored heater, adjustable from ambient temperature to 350°C | |||||||
| Vacuum System | Low-vacuum pump set + high-vacuum pump + cryogenic trap | |||||||
| Control System | Industrial control system + touchscreen + PLC, integrated manual/automatic control | |||||||
| Gas Supply System | Mass flow meter control | |||||||
| Coating System | Resistive evaporation source + electron gun + ion source | |||||||
| Coating Thickness Control System | AR, UV/IR cut filters, AF, anti-reflective coatings, decorative coatings, bandpass filters, HR coatings, etc. |
|||||||
| Coating Applications | Infocare | |||||||
| Power Supply | Three-phase five-wire 220/380V 50Hz; voltage fluctuation range: three-phase 242–399V, single-phase 198–231V; frequency fluctuation range: 49–51 Hz | |||||||
| Water Supply | Industrial softened water; water pressure: 0.2–0.6 MPa; inlet water temperature ≤25°C | |||||||
| Gas Supply | 0.4–0.6 MPa | |||||||
