Product Details

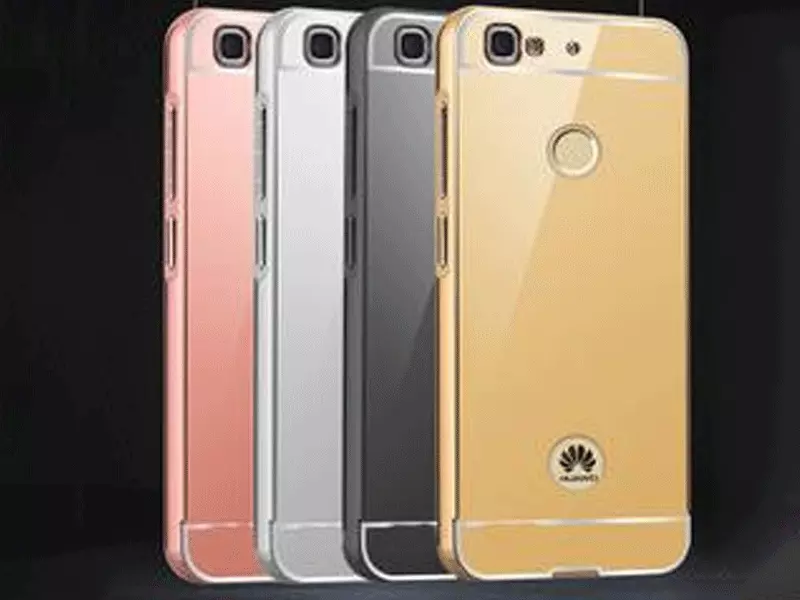

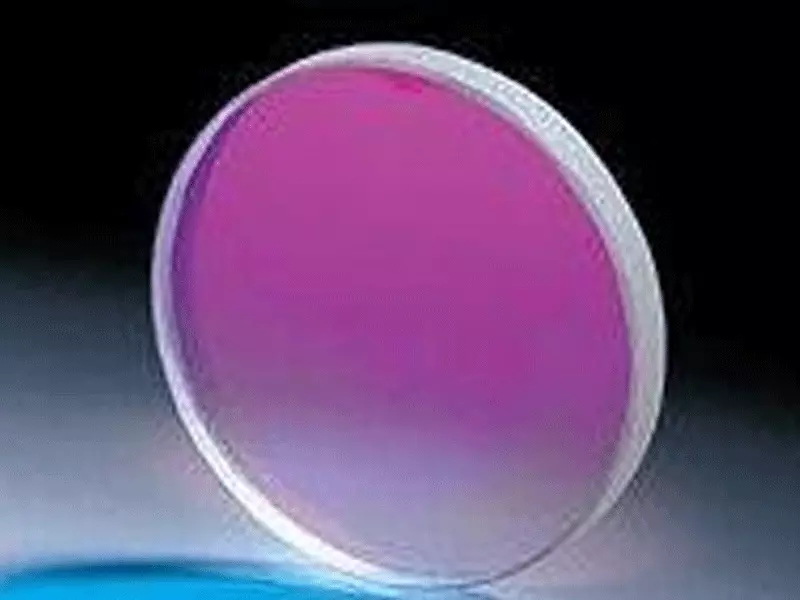

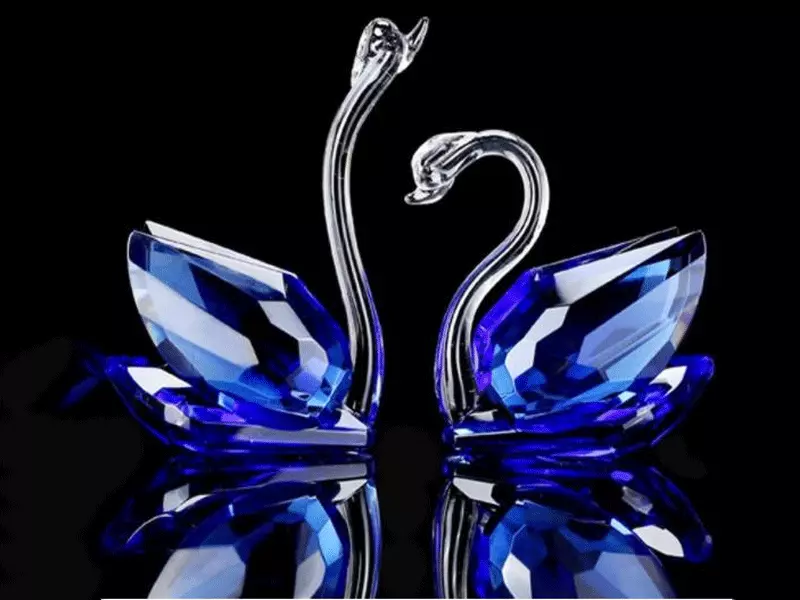

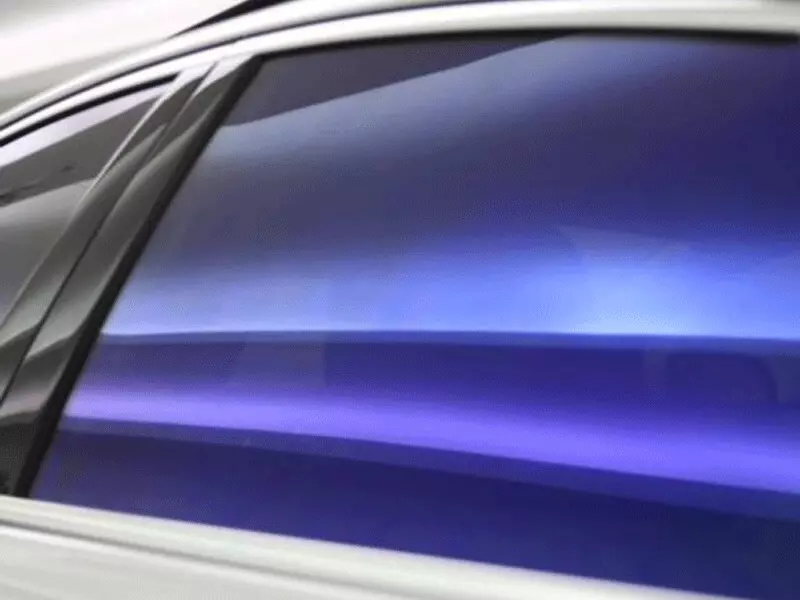

This equipment is suitable for anti-reflective coatings, high-reflectivity coatings, solar control coatings, anti-reflective coatings for plastic lenses and acrylic sheets, decorative glass products, and various reflective lamp bowls.
Products Description
Products Description

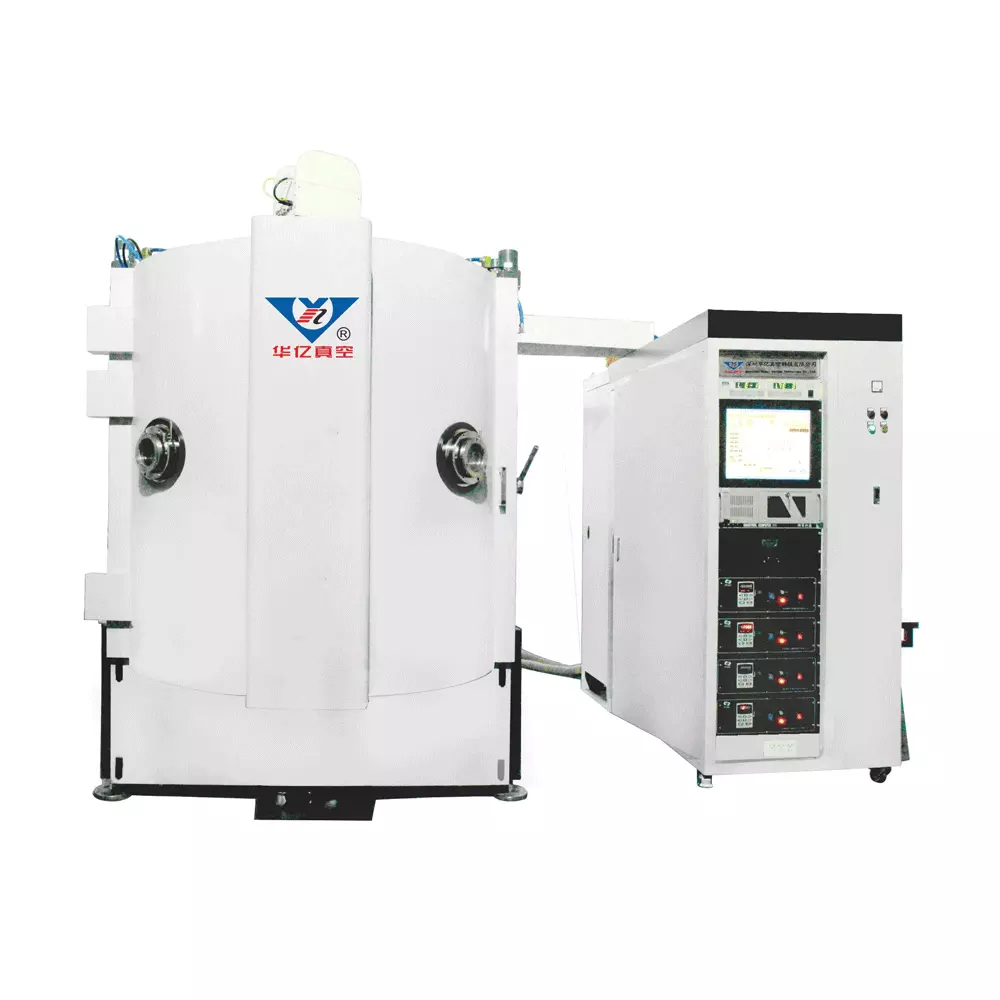

| Model and Dimensions | GX-1300B型 | JSDH-1680B型 |
| Dimensions (mm) | 中1300xH1200 | 中1680xH1280 |
| Construction | Upright, front-opening, 304 stainless steel | |
| Rotational Speed | ||
| Pumping Speed | 0–30 RPM (variable-frequency speed control) | |
| Ultimate Vacuum | From atmospheric pressure to 3.0×10⁻³ Pa in ≤15 minutes (no load) | |
| Fixture | 3.0x10－⁴ P | |
| Heating System | Public Rotation Structure | |
| Vacuum System | Armored heater, adjustable from ambient temperature to 350°C | |
| Control System | Low-vacuum pump set + high-vacuum pump + cryogenic trap | |
| Gas Supply System | Industrial control system + touchscreen + PLC, integrated manual/automatic control | |
| Coating System | Mass flow meter control | |
| Coating Thickness Control System | Resistive evaporation source + electron gun + ion source | |
| Coating Applications | Infocare | |
| Power Supply | Three-phase five-wire 220/380V 50Hz; voltage fluctuation range: three-phase 242–399V, single-phase 198–231V; frequency fluctuation range: 49–51 Hz | |
| Water Supply | Industrial softened water; water pressure: 0.2–0.6 MPa; inlet water temperature ≤25°C | |
| Gas Supply | 0.4~0. 6MPa | |
