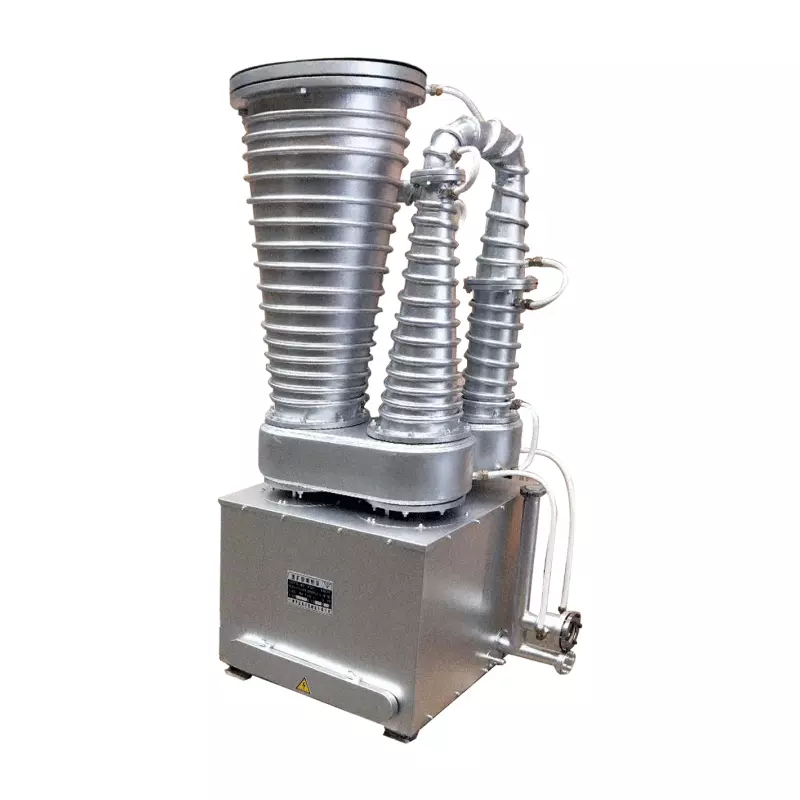

The ZL oil diffusion jet pump is a medium-vacuum oil vapor flow pump capable of achieving pressures ranging from 1.3 to 10⁻² Pa. It consists of a diffusion nozzle, a jet nozzle, and other components. Its advantages include a high pumping speed at high vacuum and sufficient critical fore-vacuum pressure at low vacuum. It features a simple structure, no mechanical transmission components, reliable operation, easy maintenance, and a long service life. Primarily configured in medium- and high-vacuum systems as an intermediate stage between the main pump and the fore-vacuum pump, this series of pumps is mainly used in fields such as vacuum metallurgy, vacuum concentration, distillation, and purification.
Main Technical Specifications of the Z L Series Oil Diffusion Ejector Pumps (Oil Booster Pumps)
| Specifications/Model | ZL-300 | ZL-300 | ZL-300 | ZL-300 |
| Pumping Speed (L/s) | ≥2200 | ≥2200 | ≥2200 | ≥2200 |
| Ultimate Pressure (Pa) | ≤7x10－² | |||
| Critical Fore-vacuum Pressure (Pa) | ≥140 | |||
| Heating Power (kW) | 12 | 14-20 | 20 | 30 |
| Power Supply Voltage (V) | 380 | |||
| Oil Consumption (L) | 18 | 30-33.5 | 75 | 100-105 |
| Inlet Diameter (mm) | 300 | 400 | 600 | 800 |
| Exhaust Diameter (mm) | 65 | 100 | 150 | 200 |
| Recommended Fore-vacuum Pump Speed (L/s) | 70 | 150 | 300 | 450 |
| Dimensions (L x W x H) | 620x625x1390 | 770x678x1675 | 1180 x990x2380 | 1480 x 1230 x 3000 |
| Weight (kg) | 240 | 600 | 1360 | 2000 |

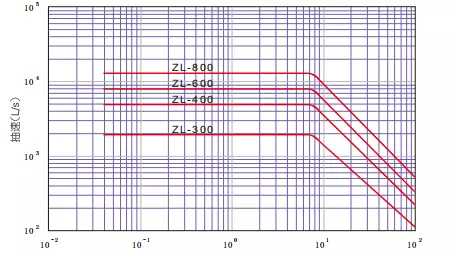

Z L Series Oil-Diffusion Ejector Pumps (Oil Booster Pumps) Evacuation Rate Curves
Z L Series Oil Diffusion Ejector Pumps (Oil Booster Pumps) Connection Dimensions
| Specifications/Model | ZL-300 | ZL-400 | ZL-600 | ZL-800 |
| H | 1375 | 1651 | 2365 | 2985 |
| h | 695 | 900 | 1290 | 1385 |
| L1 | 620 | 678 | 990 | 1230 |
| L2 | 621 | 690 | 1241 | 1482 |
| L3 | 225 | 345 | 530 | 650 |
| L4 | 300 | 388 | 580 | 730 |
| D1 | 380 | 500 | 710 | 920 |
| D2 | 350 | 465 | 670 | 880 |
| DN | 300 | 400 | 600 | 800 |
| n-∅1 | 8-∅14 | 8-∅18 | 12-∅21 | 20-∅21 |
| d1 | 125 | 170 | 220 | 275 |
| d2 | 105 | 145 | 195 | 250 |
| dn | 65 | 100 | 150 | 200 |
| n-∅2 | 4-∅9 | 4-∅12 | 8-∅12 | 8-∅12 |
Z L Series Oil Diffusion Ejector Pumps (Oil Booster Pumps)
