Product Details

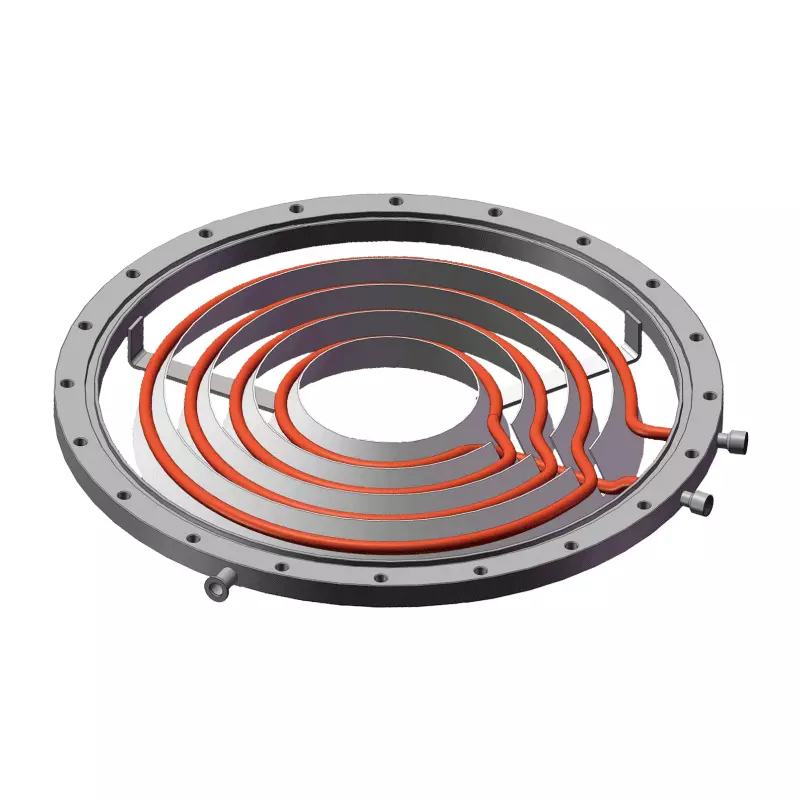

S D B Plate-Type Water-Cooled Baffle
S D B Water-Cooled Plate Damper Connection Dimensions
| Model | DN | D1 | D2 | n-∅l | H | h |
| SDB-200 | 200 | 250 | 275 | 8-∅12 | 60 | 28 |
| SDB-300 | 300 | 350 | 380 | 8-∅14 | 60 | 28 |
| SDB-400 | 400 | 465 | 500 | 8-∅18 | 60 | 28 |
| SDB-600 | 600 | 670 | 710 | 12-∅21 | 80 | 28 |
| SDB-650 | 650 | 720 | 750 | 20-∅14 | 80 | 28 |
| SDB-800 | 800 | 880 | 920 | 20-∅21 | 80 | 30 |
| SDB-900 | 890 | 980 | 1060 | 28-∅22 | 80 | 30 |
| SDB-1000 | 1000 | 1090 | 1140 | 32-∅15 | 100 | 30 |
