The new XKC series high-vacuum oil diffusion pumps can achieve a high vacuum range of 1.3×10² to 10 Pa. Their main features include: a wide operating range, with a high pumping speed even at 1.3×10² Pa; a high critical fore-vacuum pressure; and a low oil carryover rate of 1.5×10⁻³ mg/cm³·min; rapid startup, equipped with a standard oil level sight glass and a built-in water-cooled oil seal. It is the ideal vacuum source for vacuum heat treatment, brazing, and vacuum coating applications, featuring a five-stage pump core.
Main Technical Specifications of the XKC Series High-Vacuum Oil Diffusion Pumps
| Specifications/Model | XKC-650 | XKC-720 | XKC-800 | XKC-1200 |
| Maximum Pressure (Pa) | ≤5x10﹣⁵ | |||
| Pumping Speed (L/s) | ≥18400 | ≥23000 | ≥28000 | ≥60000 |
| Critical Fore-vacuum Pressure (Pa) | ≥60 | |||
| Oil Return Rate (mg/cm²·min) | ≤5x10﹣³ | |||
| Heating Power (kW) | 12 | 12 | 18 | 30-35 |
| Power Supply Voltage (V) | 380 | |||
| Pump Oil Grade | KS-3 diffusion pump oil or 275 silicone oil | |||
| Pump Oil Volume (L) | 7 | 8 | 10 | 20-25 |
| Recommended Fore-vacuum Pump Speed (L/s) | 140 | 140 | 300 | 300 |
| Dimensions (L x W x H) | 1155x750x1275 | 1155x750x1315 | 1253x1067x1740 | 2420 x1500 x2200 |
| Weight (kg) | 430 | 450 | 820 | 1250 |

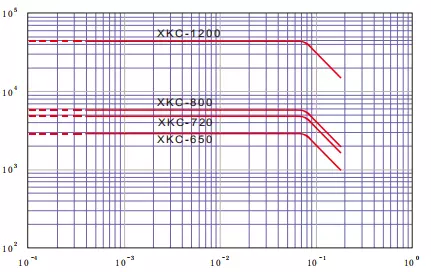

XKC Series High-Vacuum Oil Diffusion Pump Pumping Speed Curves
XKC Series High-Vacuum Oil Diffusion Pump Connection Dimensions
| Specifications/Model | XKC-650 | XKC-720 | XKC-800 | XKC-1200 |
| DN | 650 | 720 | 800 | 1200 |
| D1 | 750 | 850 | 920 | 1360 |
| D2 | 720 | 800 | 880 | 1310 |
| A | 750 | 1000 | 950 | 1350 |
| L | 600 | 600 | 870 | 1100 |
| nl-∅1 | 20-∅14 | 20-∅23 | 20-∅21 | 28-∅23 |
| dn | 150 | 150 | 180 | 300 |
| dl | 220 | 220 | 280 | 380 |
| d2 | 195 | 195 | 250 | 350 |
| n2-∅2 | 8-∅12 | 8-∅12 | 8-∅14 | 8-∅14 |
| H | 1275 | 1315 | 1660 | 2200 |
