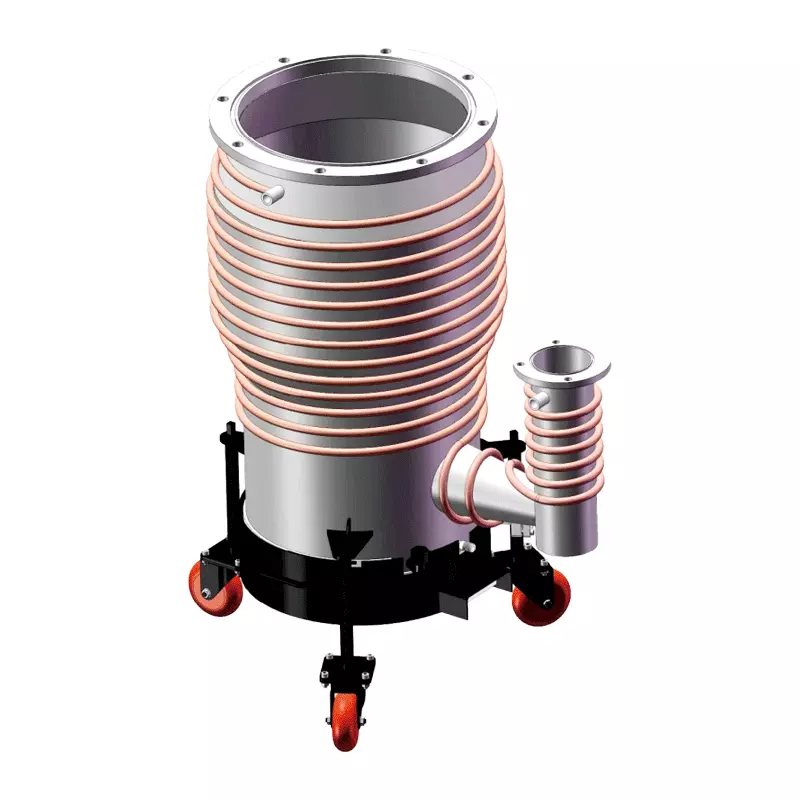

The K T series high-vacuum oil diffusion pumps are the primary equipment used to achieve high and ultra-high vacuums ranging from 10⁻¹ to 10⁻⁵ Pa. These pumps feature a convex chamber design, which increases pumping speed by approximately 30% compared to the K series, and are equipped with a four-stage pump core.
Main Technical Specifications of the K T Series High-Vacuum Oil Diffusion Pumps
| Specifications/Model | KT-300 | KT-400 | KT-600 | KT-650 |
| Maximum Pressure (Pa) | ≤5x10﹣⁵ | |||
| Pumping Speed (L/s) | ≥4400 | ≥8000 | ≥16000-16500 | ≥21200 |
| Critical Fore-vacuum Pressure (Pa) | ≥40 | ≥60 | ||
| Oil Return Rate (mg/cm²·min) | ≤5x10﹣³ | |||
| Heating Power (kW) | 3 | 4.5 | 8.4 | 15 |
| Power Supply Voltage (V) | 380 | |||
| Pump Oil Grade | KS-3 diffusion pump oil or 275 silicone oil | |||
| Pump Oil Volume (L) | 1.5 | 3.2 | 7 | 8 |
| Recommended Fore-vacuum Pump Speed (L/s) | 30 | 70 | 150 | 300 |
| Dimensions (L x W x H) | 600x435x735 | 770x555x900 | 1200x 780 x1350 | 1285x750 x 1290 |
| Weight (kg) | 85 | 170 | 400 | 480 |

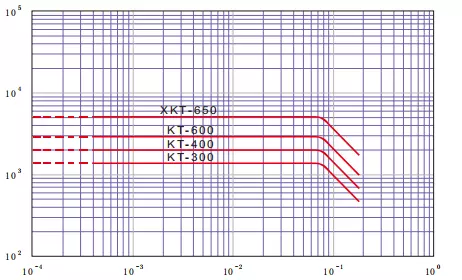

Pump Speed Curves for the K T Series High-Vacuum Oil Diffusion Pumps
K T Series High-Vacuum Oil Diffusion Pumps: Connection Dimensions
| Specifications/Model | KT-300 | KT-400 | KT-600 | KT-650 |
| DN | 300 | 400 | 600 | 650 |
| D1 | 380 | 500 | 710 | 750 |
| D2 | 350 | 465 | 670 | 720 |
| A | 330 | 440 | 660 | 800 |
| L | 280 | 360 | 600 | 600 |
| nl-∅1 | 8-∅14 | 8-∅18 | 12-∅21 | 20-∅14 |
| dn | 80 | 100 | 150 | 150 |
| dl | 145 | 170 | 220 | 220 |
| d2 | 125 | 145 | 195 | 195 |
| n2-∅2 | 4-∅9 | 4-∅12 | 8-∅12 | 8-∅12 |
| H | 720 | 890 | 1340 | 1315 |
K T Series High-Vacuum Oil Diffusion Pumps
