The KA series high-vacuum oil diffusion pumps are the primary equipment used to achieve high and ultra-high vacuums ranging from 10⁻¹ to 10⁻⁵ Pa. Their advantages include a low profile, compact size, and high pumping speed. They utilize an internal heating system, offering a high critical fore-vacuum pressure at 10⁻¹ Pa, and feature a three-stage pump core.
Main Technical Specifications of the K A Series High-Vacuum Oil Diffusion Pumps
| Specifications/Model | KA-500 | KA-600 | KA-800 |
| Maximum Pressure (Pa) | ≤5x10﹣⁵ | ||
| Pumping Speed (L/s) | ≥8000 | ≥14500 | ≥24000 |
| Critical Fore-vacuum Pressure (Pa) | ≥40 | ≥50 | |
| Oil Return Rate (mg/cm²·min) | ≤5x10﹣³ | ||
| Heating Power (kW) | 6.9 | 8.4 | 15-18 |
| Power Supply Voltage (V) | 380 | ||
| Pump Oil Grade | KS-3 diffusion pump oil or 275 silicone oil | ||
| Pump Oil Volume (L) | 5 | 7 | 8-10 |
| Recommended Fore-vacuum Pump Speed (L/s) | 70 | 140 | 140 |
| Dimensions (L x W x H) | 680x550x838 | 950×765×1070 | 1200x960 x1455 |
| Weight (kg) | 120 | 300 | 450 |

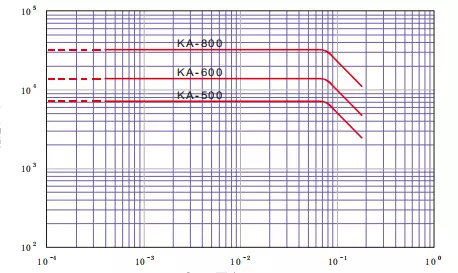

Pump Speed Curves for the K A Series High-Vacuum Oil Diffusion Pumps
K A Series High-Vacuum Oil Diffusion Pump Connection Dimensions
| Specifications/Model | KA-500 | KA-600 | KA-800 |
| DN | 500 | 600 | 800 |
| D1 | 550 | 710 | 920 |
| D2 | 510 | 670 | 890 |
| A | 405 | 480 | 890 |
| L | 405 | 440 | 800 |
| nl-∅1 | Brake caliper link | 12-∅21 | 21-∅14 |
| dn | 100 | 150 | 160 |
| dl | 130 | 220 | 225 |
| d2 | 107 | 195 | 200 |
| n2-∅2 | Brake caliper link | 8-∅12 | 8-∅10 |
| H | 838 | 1040 | 1450 |

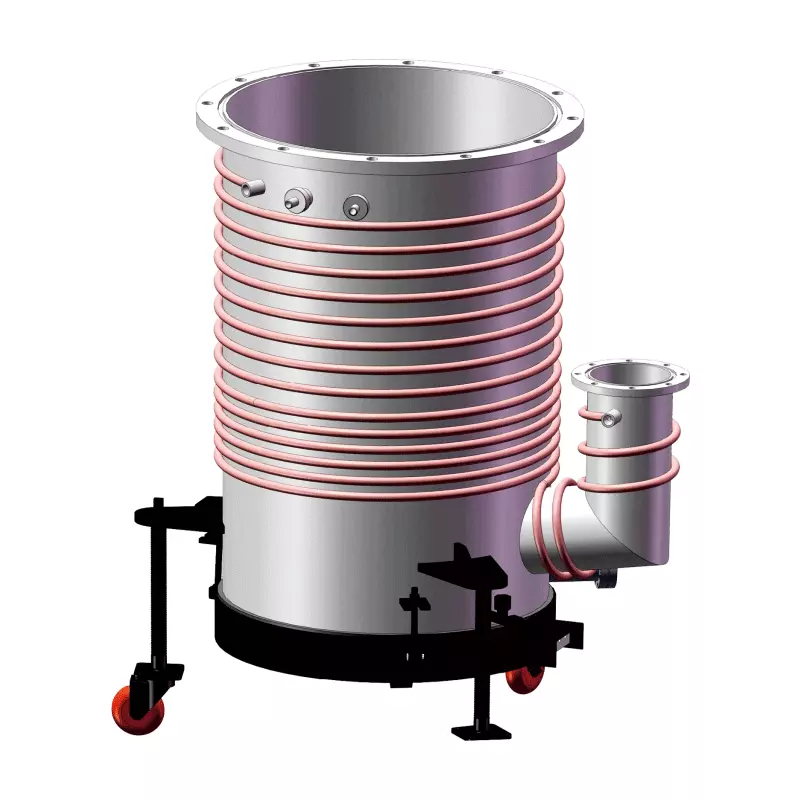

KA Series High-Vacuum Oil Diffusion Pumps
