The KTD series of high-vacuum oil diffusion pumps feature a convex cavity design and are capable of achieving high and ultra-high vacuum levels ranging from 10⁻² to 10⁻⁵ Pa. Their advantages include a built-in water-cooled oil trap, high effective pumping speed, low oil carryover, and a simple structure.
Main Technical Specifications of the K T D Series High-Vacuum Low-Oil-Return Diffusion Pumps
| Specifications/Model | KTD-320 | KTD-500 | KTD-800 | KTD-1000 |
| Maximum Pressure (Pa) | ≤5x10﹣⁵ | |||
| Pumping Speed (L/s) | ≥140 | |||
| Critical Fore-vacuum Pressure (Pa) | ≥4400 | ≥10000-12000 | ≥22000-24000 | ≥35000-38000 |
| Oil Return Rate (mg/cm²·min) | ≤5x10﹣³ | |||
| Heating Power (kW) | 4 | 6.9 | 15 | 24 |
| Power Supply Voltage (V) | 220 | 380 | ||
| Pump Oil Grade | KS-3 diffusion pump oil or 275 silicone oil | |||
| Pump Oil Volume (L) | 1.5-1.8 | 4.4-5 | 10 | 16 |
| Recommended Fore-vacuum Pump Speed (L/s) | 30 | 70 | 300 | 300 |
| Dimensions (L x W x H) | 730x500x900 | 1065x680x1280 | 1700x1000x1945 | 2020 x 1290x2315 |
| Weight (kg) | 85 | 285 | 850 | 980 |

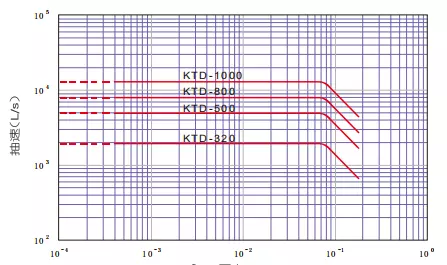

Pump Speed Curves for the KTD Series High-Vacuum Low-Back-Diffusion Pumps
Connection Dimensions for the KTD Series High-Vacuum Low-Oil-Return Diffusion Pumps
| Specifications/Model | KTD-320 | KTD-500 | KTD-800 | KTD-1000 |
| DN | 320 | 500 | 800 | 1000 |
| D1 | 425 | 610 | 920 | 1140 |
| D2 | 395 | 580 | 880 | 1090 |
| A | 400 | 610 | 920 | 1150 |
| L | 240 | 500 | 800 | 1060 |
| nl-∅1 | 12-∅14 | 16-∅14 | 20-∅21 | 24-∅23 |
| dn | 100 | 160 | 300 | 350 |
| dl | 165 | 225 | 380 | 435 |
| d2 | 145 | 200 | 350 | 405 |
| n2-∅2 | 8-∅9 | 8-∅12 | 8-∅14 | 8-∅14 |
| H | 890 | 1265 | 1940 | 2310 |

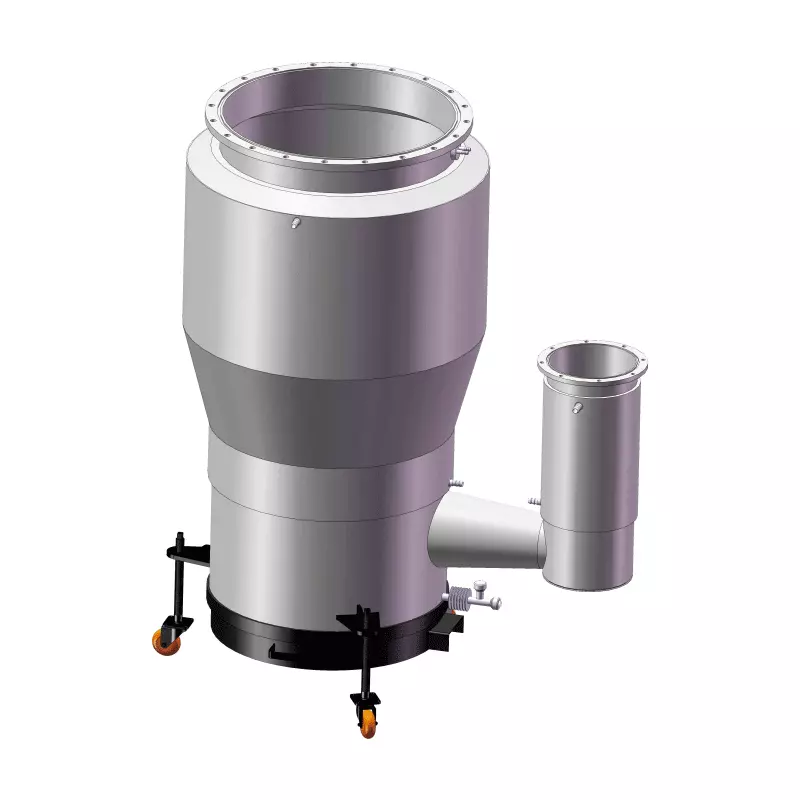

KTD Series High-Vacuum Low-Oil-Return Diffusion Pumps
