The new KC series high-vacuum oil diffusion pumps can achieve a high vacuum of 1.3 × 10⁻¹⁰ Pa. Their main features include: a wide operating range, with a high pumping speed even at 1.3 × 10⁻¹⁰ Pa; a high critical fore-vacuum pressure; and a low oil carryover rate of 1.5 × 10⁻³ mg/cm·min; rapid startup, equipped with a standard oil level sight glass and a built-in water-cooled oil seal. It is the ideal vacuum source for vacuum heat treatment, brazing, and vacuum coating applications, featuring a five-stage pump core.
Main Technical Specifications of the K C Series High-Vacuum Oil Diffusion Pumps
| Specifications/Model | KC-500 | KC-600 | KC-900 | KC-1000 |
| Maximum Pressure (Pa) | ≤5x10﹣⁵ | |||
| Pumping Speed (L/s) | ≥12000 | ≥17500 | ≥36000 | ≥45000 |
| Critical Fore-vacuum Pressure (Pa) | ≥60 | |||
| Oil Return Rate (mg/cm²·min) | ≤5x10﹣³ | |||
| Heating Power (kW) | 12 | 9 | 24 | 24-27 |
| Power Supply Voltage (V) | 380 | |||
| Pump Oil Grade | KS-3 diffusion pump oil or 275 silicone oil | |||
| Pump Oil Volume (L) | 5-6 | 7 | 11-12 | 12 |
| Recommended Fore-vacuum Pump Speed (L/s) | 140 | 140 | 300 | 300 |
| Dimensions (L x W x H) | 1100 x700 x 1235 | 1155x750x1235 | 1760x1100x1845 | 1770x1200x1840 |
| Weight (kg) | 320 | 380 | 900 | 980 |

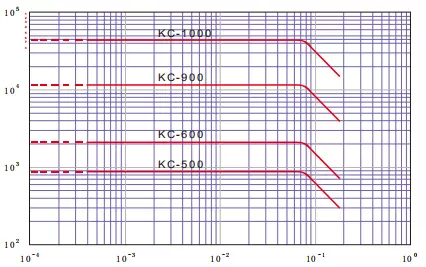

KC Series High-Vacuum Oil Diffusion Pump Pumping Speed Curves
Connection Dimensions for the K C Series High-Vacuum Oil Diffusion Pumps
| Specifications/Model | KC-500 | KC-600 | KC-900 | KC-1000 |
| DN | 540 | 630 | 890 | 1000 |
| D1 | 700 | 750 | 1060 | 1120 |
| D2 | 635 | 720 | 980 | 1090 |
| A | 635 | 750 | 1073 | 1073 |
| L | 584 | 600 | 810 | 810 |
| nl-∅1 | 20-∅18 | 20-∅14 | 28-∅22 | 32-∅15 |
| dn | 150 | 150 | 200 | 200 |
| dl | 230 | 220 | 280 | 280 |
| d2 | 191 | 195 | 250 | 250 |
| n2-∅2 | 8-∅14 | 8-∅12 | 8-∅14 | 8-∅14 |
| H | 1220 | 1235 | 1810 | 1845 |

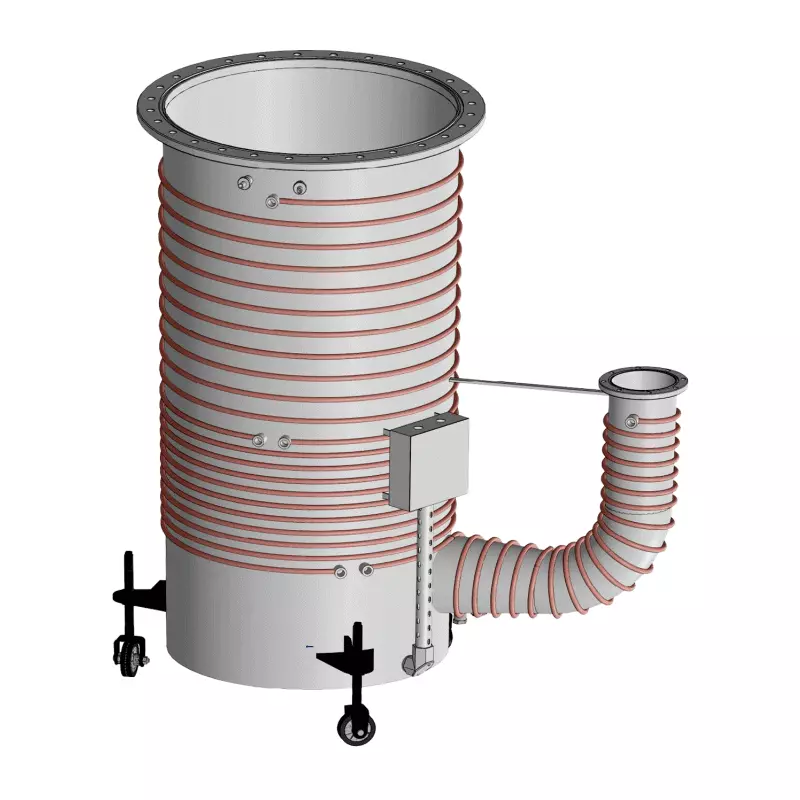

KC Series High-Vacuum Oil Diffusion Pumps
